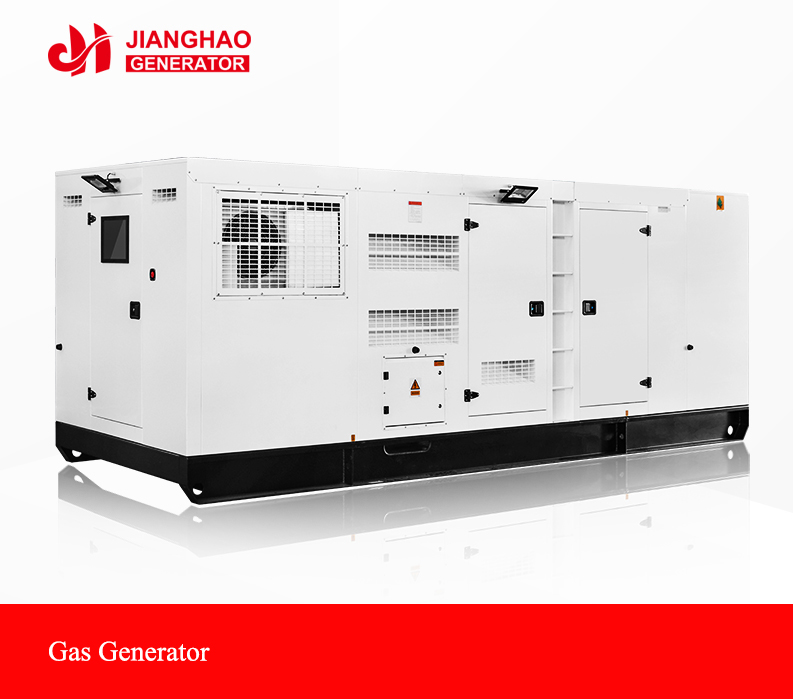

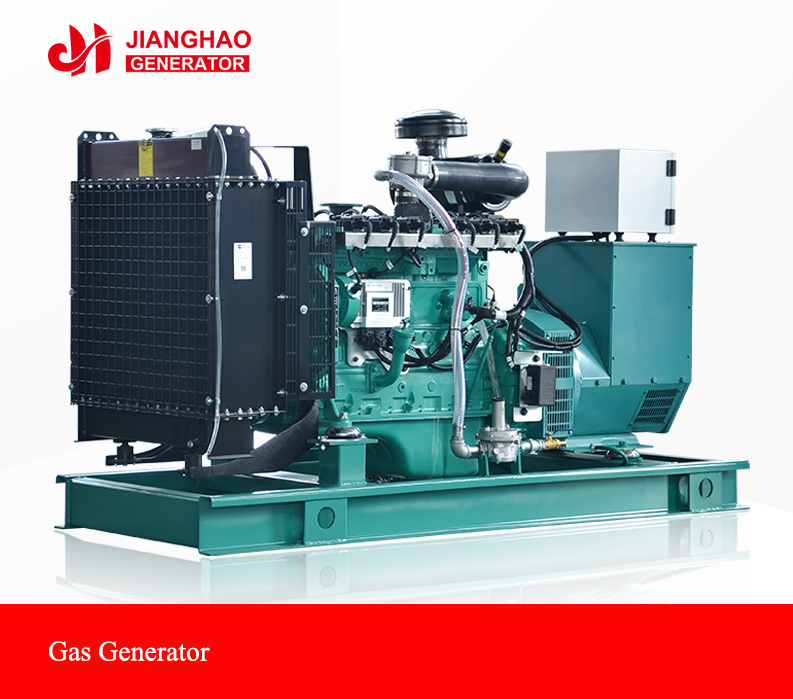

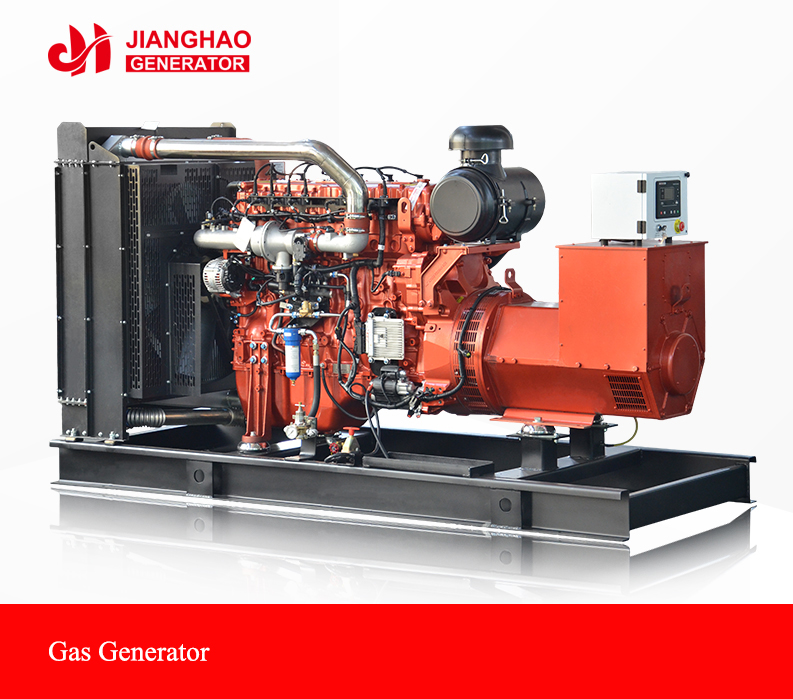

    Jiangsu Jianghao Generator Co.,Ltd produces gas generator. Gas generator is a kind of  liquefied petroleum gas, natural gas and other combustible gases as combustion, instead of gasoline, diesel as power, it is the new, highly efficient, new energy generators. Gas generator has a wide range of output power, reliable turning up and running, good quality of alternator, light weight, small size, easy maintenance, low-frequency noise, etc., usually they have the following four advantages:



    1.A good quality of alternator,when alternator working,it is just doing rotational motion,so it has a quick reaction of power transfer,working smoothly,high precision voltage and frequency of output,
    small fluctuations, if minus or increases 50% and 75% load, the diesel generator accumulation of small camel line is very stable,it is superior than electrical performance of diesel generator .



    2.Good starting performance, start success rate
    It is only 30 seconds from cold start after the success of full load,but according to the international regulations,after three minutes diesel alternator starts successfully,it can with a load . Gas generator can guarantee the success rate of start under any ambient temperature and climate.



    3. Low noise, small vibration.
    As the gas turbine rotating at high speed, its vibration is very small, and the low-frequency noise than diesel generators.



    4., Adopted gas  is clean, cheap energy

    Such as: methane gas, straw gas, biogas, etc., to use them as fuel,not only reliable, low cost, but also can change waste into treasure, and it does not produce pollution.

    Gas Electric Generator:

    TypeOutput PowerCuurrent
    (A)
    Engine modelCylinderBore*Stroke
    (mm)
    FuelCon.
    (L)

    Lube

    capacity

    (L)

    Dimension(mm )
    L*W*H
    Weight(kg)
    KWKVA
    JHRQ-30GF3037.554

    Chaochai

    CY4102

    4102*1183.85672000*750*1300760
    JHRQ-50GF5062.590

    Huafeng

    HF6105Q

    6105*1153.6152000*750*1300850
    JHRQ-80GF80100144

    Huafeng

    HF6105ZQ

    6105*1153.6152200*850*15001060
    JHRQ-100GF100125180

    Weichai Steyr

    P10

    6126*15511.6152350*900*16501400
    JHRQ-120GF120150216

    Weichai Steyr

    P10

    6126*15511.6152400*900*14501700
    JHRQ-150GF150187.5270

    Weichai Steyr

    P10

    6126*15511.6152700*1000*16002000
    JHRQ-220GF220275360

    Weichai Steyr

    P12

    6126*15511.6153300*980*19002500
    JHRQ-100GF100125180

    SDEC

    SC9DT210D2

    6114*1448.82242600*900*16002200
    JHRQ-150GF150187.5270

    SDEC

    SC13GT260D2

    6135*15012.8834.42800*1500*21002500


     Cummins, gas electric generator:

    TypeOutput PowerCuurrent
    (A)
    Engine modelCylinderBore*Stroke
    (mm)
    FuelCon.
    (L)
    Lube capacity(L)Dimension(mm )
    L*W*H
    Weight(kg)
    KWKVA
    JHRQ-303037.5544B4L102*1203.9112000*750*1300760
    JHRQ-404050724B4L102*1203.9112000*750*1300760
    JHRQ-505062.5906B6L102*1203.9112000*750*1300850
    JHRQ-6060751086BT6L102*1205.9172200*850*15001040
    JHRQ-80801001446BT6L102*1205.9172200*850*15001060
    JHRQ-9090112.51626BT6L102*1205.9172300*850*15001200
    JHRQ-1001001201806CT6L114*1358.3172350*900*16501400
    JHRQ-1201201502166CT6L114*1358.3242400*900*14501700
    JHRQ-130130162.52346CT6L114*1358.3242500*960*15501900
    JHRQ-150150187.52706LT6L114*1358.9362700*1000*16002000
    JHRQ-1601602002886LT6L125*14711402850*1060*17602320
    JHRQ-1801802253246LT8.96L125*14714383000*1060*19002450
    JHRQ-200200312.5360NT8556L125*14714383300*980*19002500
    JHRQ-220220275396NT8556L125*14711403000*980*16002450
    JHRQ-250250312.5450NT8556L140*15214383300*980*17602500
    JHRQ-280280350504NT8556L140*15214383300*980*17602600
    JHRQ-300300375540KT196L140*15214383300*980*17603050
    JHRQ-350350437.5631KT196L140*15214383300*1100*18503180
    JHRQ-400400500721KT196L159*15918.9503500*1300*19703500
    JHRQ-440440550792KT196L159*15918.9503500*1300*19703700
    JHRQ-500500625902KT386L159*15918.9504000*1500*20004400
    JHRQ-6006007501082KT3812V159*15937.81354400*1900*24507500
    JHRQ-7007008751262KT3812V159*15937.81354500*1900*24507600
    JHRQ-750750937.51350KT3812V159*15937.81354500*1900*24507850
    JHRQ-80080010001440KT5012V159*15937.81354500*1900*24507850
    JHRQ-98098012251764KT5012V159*15937.81354500*1900*24507850
    JHRQ-1100110013751984KT5016V159*15950.31775300*2200*260010300


     ①The above generators can be used natural gas, oil filed gas, bio-gas, straw gas, coal gas and other gases as fuel.
     ②standard 1500RPM, 50HZ, 230 / 400V, power factor 0.8, three-phase four-wires system. 60HZ and other speed generators can be customized.
     ③alternators can be choosed according to customer needs, such as Wuxi Stamford, Shanghai Marathon, Shanghai Hengsheng ,Guangzhou England, and other famous brands.
     ④The parameter list is just for reference only, subject to change without notice.
