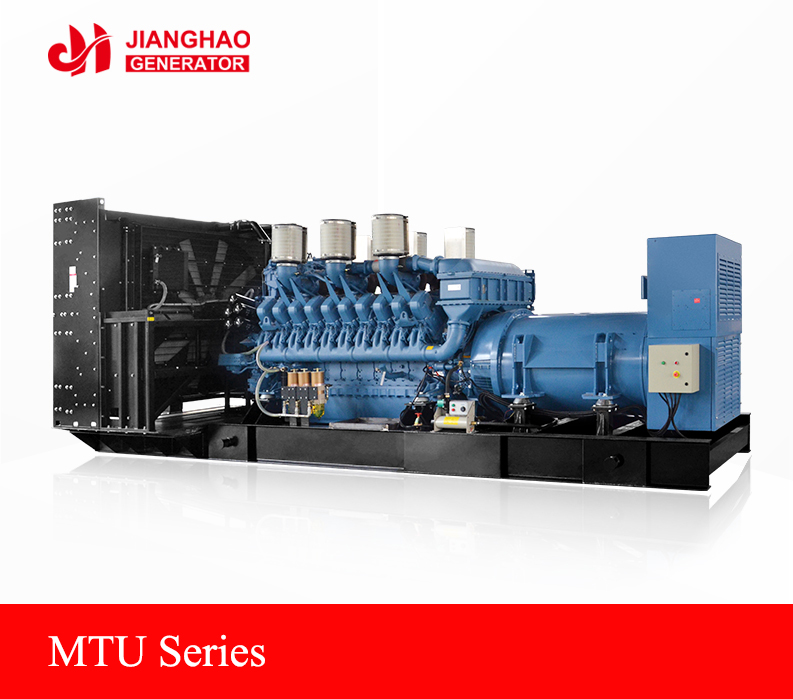

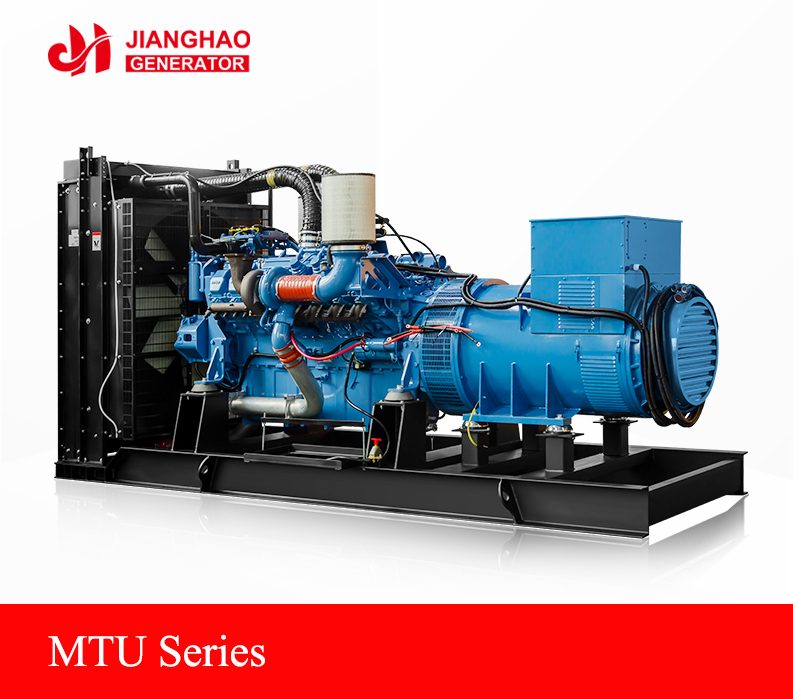

MTU series generators driven by Germany MTU industry engine which have leading level in the world,it use electronic injection technology and full digitalization ADEC digital control system,it meet Germany TALuft standard,energy conservation and environmental.MTU generator equip Marathon,Stamford etc high-end alternator,advanced performance and running stable.
| Type | Output Power |
Cuurrent (A) | Engine model | Cylinder |
Bore*Stroke (mm) |
FuelCon. (L) |
Dis. g/kw.h |
Dimension(mm ) L*W*H | Weight(kg) | Detail | |
| KW | KVA | ||||||||||
| MTU 1600系列 | |||||||||||
| JHM-220GF | 220 | 275 | 396 | 6R1600G10F | 6 | 122*150 | 10.5L | 201 | 2800*1150*1650 | 2500 | Click |
| JHM-250GF | 250 | 312.5 | 450 | 6R1600G20F | 6 | 122*150 | 10.5L | 199 | 2800*1150*1650 | 2900 | Click |
| JHM-300GF | 300 | 375 | 540 | 8V1600G10F | 8 | 122*150 | 14L | 191 | 2840*1600*1975 | 3250 | Click |
| JHM-320GF | 320 | 400 | 576 | 8V1600G20F | 8 | 122*150 | 14L | 190 | 2840*1600*1975 | 3250 | Click |
| JHM-360GF | 360 | 450 | 648 | 10V1600G10F | 10 | 122*150 | 17.5L | 191 | 3200*1600*2000 | 3800 | Click |
| JHM-400GF | 400 | 500 | 720 | 10V1600G20F | 10 | 122*150 | 17.5L | 190 | 3320*1600*2000 | 4000 | Click |
| JHM-480GF | 480 | 600 | 864 | 12V1600G10F | 12 | 122*150 | 21L | 195 | 3300*1660*2000 | 3900 | Click |
| JHM-500GF | 500 | 625 | 900 | 12V1600G20F | 12 | 122*150 | 21L | 195 | 3400*1660*2000 | 4410 | Click |
| MTU 2000系列 | |||||||||||
| JHM-550GF | 550 | 687.5 | 990 | 12V2000G25 | 12 | 130*150 | 23.88L | 197 | 4000*1650*2280 | 6500 | Click |
| JHM-630GF | 630 | 787.5 | 1134 | 12V2000G65 | 12 | 130*150 | 23.88L | 202 | 4200*1650*2280 | 7000 | Click |
| JHM-800GF | 800 | 1000 | 1440 | 16V2000G25 | 16 | 130*150 | 31.84L | 198 | 4500*2000*2300 | 7800 | Click |
| JHM-880GF | 880 | 1100 | 1584 | 16V2000G65 | 16 | 130*150 | 31.84L | 198 | 4500*2000*2300 | 7800 | Click |
| JHM-1000GF | 1000 | 1250 | 1800 | 18V2000G65 | 18 | 130*150 | 35.82L | 202 | 4700*2000*2380 | 9000 | Click |
| MTU 4000系列 | |||||||||||
| JHM-1100GF | 1100 | 1375 | 1980 | 12V4000G21R | 12 | 165*190 | 48.7L | 199 | 6100*2100*2400 | 11500 | Click |
| JHM-1200GF | 1200 | 1500 | 2160 | 12V4000G23R | 12 | 170*210 | 57.2L | 195 | 6150*2150*2400 | 12000 | Click |
| JHM-1400GF | 1400 | 1750 | 2520 | 12V4000G23 | 12 | 170*210 | 57.2L | 189 | 6150*2150*2400 | 13000 | Click |
| JHM-1500GF | 1500 | 1875 | 2700 | 12V4000G63 | 12 | 170*210 | 57.2L | 193 | 6150*2150*2400 | 14000 | Click |
| JHM-1760GF | 1760 | 2200 | 3168 | 16V4000G23 | 16 | 170*210 | 76.3L | 192 | 6500*2600*2500 | 17000 | Click |
| JHM-1900GF | 1900 | 2375 | 3420 | 16V4000G63 | 16 | 170*210 | 76.3L | 191 | 6550*2600*2500 | 17500 | Click |
| JHM-2200GF | 2200 | 2750 | 3960 | 20V4000G23 | 20 | 170*210 | 95.4L | 195 | 8300*2950*2550 | 24000 | Click |
| JHM-2400GF | 2400 | 3000 | 4320 | 20V4000G63 | 20 | 170*210 | 95.4L | 193 | 8300*2950*2550 | 24500 | Click |
| JHM-2500GF | 2400 | 3125 | 4500 | 20V4000G63L | 20 | 170*210 | 95.4L | 192 | 8300*2950*2550 | 25000 | Click |
