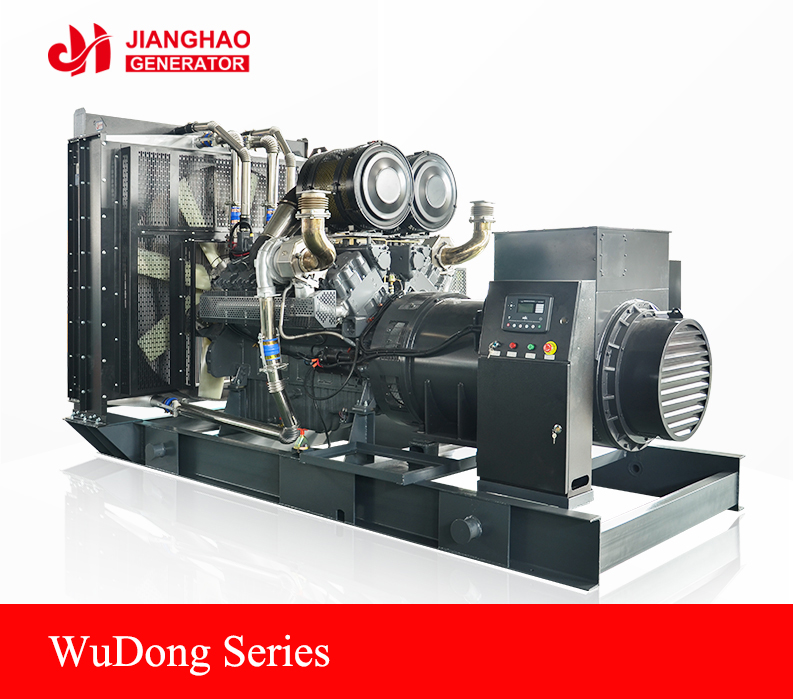

Wudong series diesel generator set is developed and produced Wandy brand new 135 series diesel generator with famous diesel engine ,those are adopted Wuxi Power Engineering Co., Ltd.Wudong Wandy diesel engine selects high rates of P-type high-pressure oil pump with porous low penetration capacity injectors , so that the oil machine is more powerful and overall performance is better. Diesel generator sets power from 100KW-700KW,nearly more than 20 different powers functions diesel generator sets, in order to make customers have much more choices.

Wudong Diesel Generator：

Type	Output Power		Cuurrent (A)	Engine model	Cylinder	Bore*Stroke (mm)	FuelCon. (L)	Dis. g/kw.h	Dimension(mm ) LWH	Weight(kg)	Detail
Type	KW	KVA	Cuurrent (A)	Engine model	Cylinder	Bore*Stroke (mm)	FuelCon. (L)	Dis. g/kw.h	Dimension(mm ) LWH	Weight(kg)	Detail
JHWD-200GF	200	250	360	WD129TAD19	6	135*150	12.9	213	27509001400	2100	Click
JHWD-220GF	220	275	396	WD129TAD23	6	135*150	12.9	217	300011001750	2200	Click
JHWD-250GF	250	312.5	450	WD129TAD25	6	135*150	25.8	217	300011001750	2250	Click
JHWD-280GF	280	350	504	WD135TAD28	6	138*150	25.8	221	320014001800	3400	Click
JHWD-300GF	300	375	540	WD145TAD30	6	138*150	26.8	217	300014001800	3200	Click
JHWD-320GF	320	400	576	WD145TAD33L	6	138*160	26.8	198	350016001900	3600	Click
JHWD-350GF	350	437.5	630	WD269TD35	12	138*150	26.8	198	350016001900	3800	Click
JHWD-380GF	380	475	684	WD269TD38	12	138*150	26.9	198	360016001900	3850	Click
JHWD-400GF	400	500	720	WD269TAD41	12	135*150	26.9	198	365017001900	4000	Click
JHWD-420GF	420	525	756	WD269TAD43	12	138*150	26.9	198	365017001900	4000	Click
JHWD-450GF	450	562.5	810	WD269TAD45	12	138*150	26.9	198	365017001900	4100	Click
JHWD-480GF	480	600	864	WD269TAD48	12	138*150	26.9	198	365017001900	4200	Click
JHWD-500GF	500	625	900	WD269TAD50	12	138*150	26.9	198	365017001900	4200	Click
JHWD-560GF	560	700	1008	WD269TAD56	12	138*150	26.9	213	370017001900	4500	Click
JHWD-580GF	580	725	1044	WD287TAD58	12	138*160	26.9	221	370017001900	4400	Click
JHWD-620GF	620	775	1116	WD287TAD61L	12	138*160	28.7	221	370017001900	4400	Click
JHWD-680GF	680	850	1224	WD305TAD68	12	140*165	30.5	197	400017002000	4600	Click
JHWD-780GF	780	975	1404	WD327TAD78	12	145*165	32.7	197	420017002000	5200	Click
JHWD-820GF	820	1025	1476	WD327TAD82	12	145*165	32.7	197	450018002100	6500	Click
JHWD-880GF	880	1100	1584	WD360TAD88	12	145*165	32.7	199	450018002100	6500	Click
JHWD-920GF	920	1150	1656	WD360TAD92	12	145*165	32.7	199	430018002300	6500	Click

1.Above technical parameters speed is 500RPM, frequency 50HZ, rated voltage 400 / 230V, power factor 0.8, and 3-phase 4-wire. 60HZ diesel generators can be made according to the specific needs of customers.

2.Alternator is based on customer needs, you can choose from Wuxi Stamford, Shanghai Hengsheng(recommend), Shanghai marathon and other famous brands.

3 The parameter list above are for reference only, subject to change without notice.
