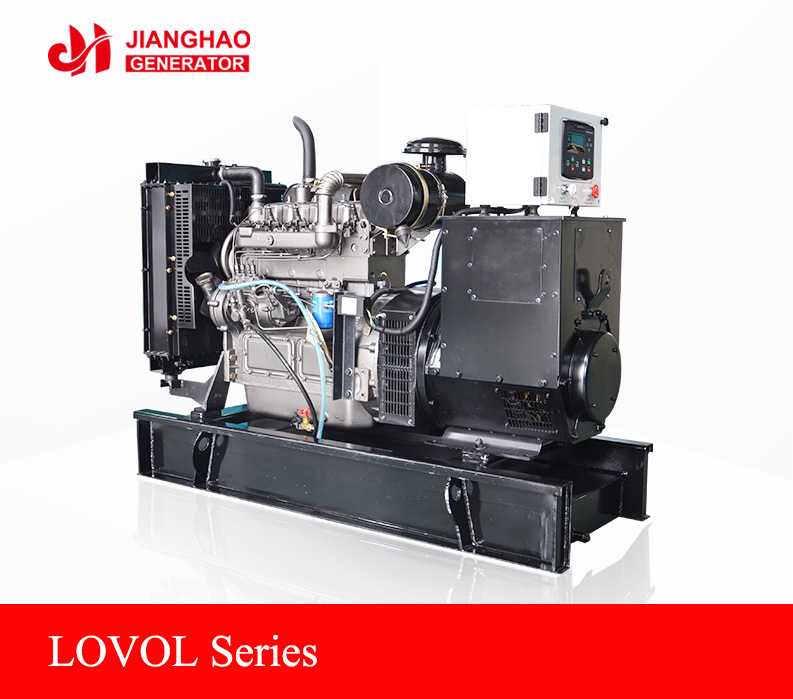

Lovol is the collection research and development, manufacture, sales and service in the integration of modern diesel engine manufacturing enterprises, located in tianjin beichen science and technology park. Ray walter power products are widely used in automobile, engineering machinery, genset, agricultural equipment, Marine auxiliary machinery and other equipment, based on domestic, face overseas, marketing in Europe, the Middle East, South America, Africa and so on more than one hundred countries and regions.
Type | Output Power |
Cuurrent (A) | Engine model | Cylinder |
Bore*Stroke (mm) |
FuelCon. (L) |
Dis. g/kw.h |
Dimension(mm ) L*W*H | Weight(kg) | Detail | |
KW | KVA | ||||||||||
JHLV-24GF | 24 | 30 | 43 | 1003G | 3 | 100*127 | 2.99 | 210 | 1500*700*1100 | 600 | Click |
JHLV-24GF | 24 | 30 | 43 | 1003G1A | 3 | 100*127 | 2.99 | 210 | 1600*730*1180 | 780 | Click |
JHLV-30GF | 30 | 37.5 | 54 | 1003TG1A | 3 | 100*127 | 2.99 | 210 | 1790*700*1100 | 900 | Click |
JHLV-40GF | 40 | 50 | 72 | 1003TG | 3 | 101*127 | 2.99 | 210 | 1660*730*1180 | 840 | Click |
JHLV-48GF | 48 | 60 | 86.4 | 1004TG1A | 4 | 103*127 | 3.99 | 205 | 1830*730*1180 | 910 | Click |
JHLV-50GF | 50 | 62.5 | 90 | 1004TG | 4 | 103*127 | 3.99 | 205 | 1830*730*1180 | 910 | Click |
JHLV-60GF | 60 | 75 | 108 | 1004TG | 4 | 103*127 | 3.99 | 205 | 1830*730*1180 | 910 | Click |
JHLV-75GF | 75 | 93 | 135 | 1006TG1A | 6 | 104*127 | 5.98 | 209 | 2210*740*1240 | 1260 | Click |
JHLV-78GF | 78 | 97 | 140 | 1006TG3A | 6 | 104*127 | 5.98 | 209 | 2210*740*1240 | 1260 | Click |
JHLV-80GF | 80 | 100 | 144 | 1006TG2A | 6 | 104*127 | 5.98 | 209 | 2210*740*1240 | 1260 | Click |
JHLV-98GF | 98 | 122.5 | 176.4 | 1006TAG1A | 6 | 105*127 | 5.98 | 209 | 2330*800*1240 | 1290 | Click |
JHLV-110GF | 110 | 137 | 198 | 1006TAG | 6 | 106*127 | 5.98 | 209 | 2330*800*1240 | 1350 | Click |
JHLV-116GF | 116 | 145 | 208.8 | 1106C-P6TAG2 | 6 | 100*127 | 5.98 | 213 | 2450*950*1400 | 1500 | Click |
JHLV-128GF | 128 | 160 | 230.4 | 1106C-P6TAG3 | 6 | 100*127 | 5.98 | 213 | 2450*950*1400 | 1500 | Click |
JHLV-144GF | 144 | 180 | 259.2 | 1106C-P6TAG4 | 6 | 100*127 | 5.98 | 213 | 2500*950*1400 | 1580 | Click |
